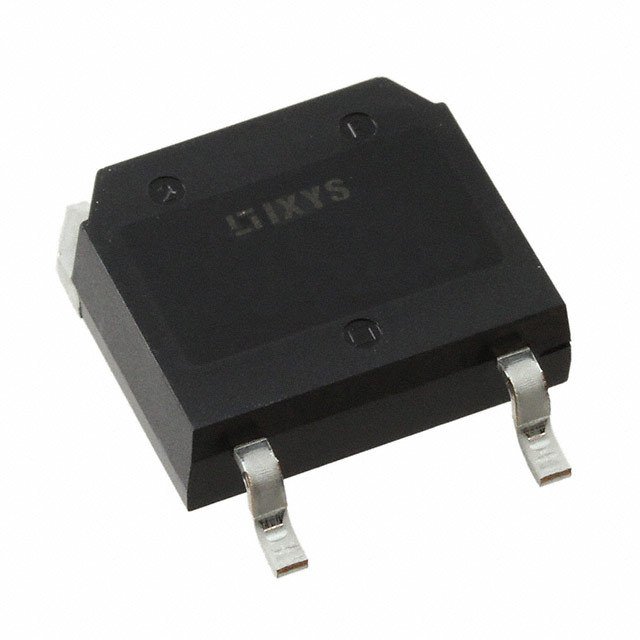

| Part Number | IXYT30N450HV | IXYH30N450HV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | PT |
| Voltage - Collector Emitter Breakdown (Max) | 4500 V | 4500 V |
| Current - Collector (Ic) (Max) | 60 A | 60 A |
| Current - Collector Pulsed (Icm) | 200 A | 200 A |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 30A | 3.9V @ 15V, 30A |
| Power - Max | 430 W | 430 W |
| Switching Energy | - | - |
| Input Type | Standard | Standard |
| Gate Charge | 88 nC | 88 nC |
| Td (on/off) @ 25°C | 38ns/168ns | - |
| Test Condition | 960V, 30A, 10Ohm, 15V | 960V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Through Hole |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-247-3 Variant |
| Supplier Device Package | TO-268HV (IXYT) | TO-247HV |
