IXYS-IXYT20N120C3D1HV - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	36 A
Current - Collector Pulsed (Icm):	88 A
Vce(on) (Max) @ Vge, Ic:	3.4V @ 15V, 20A
Power - Max:	230 W
Switching Energy:	1.3mJ (on), 1mJ (off)
Input Type:	Standard
Gate Charge:	53 nC
Td (on/off) @ 25°C:	20ns/90ns
Test Condition:	600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	29 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package:	TO-268HV (IXYT)

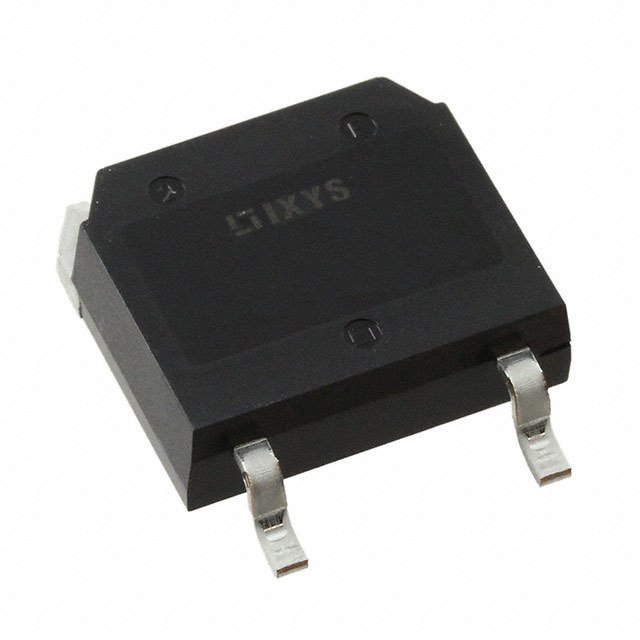

IXYS IXYT20N120C3D1HV
