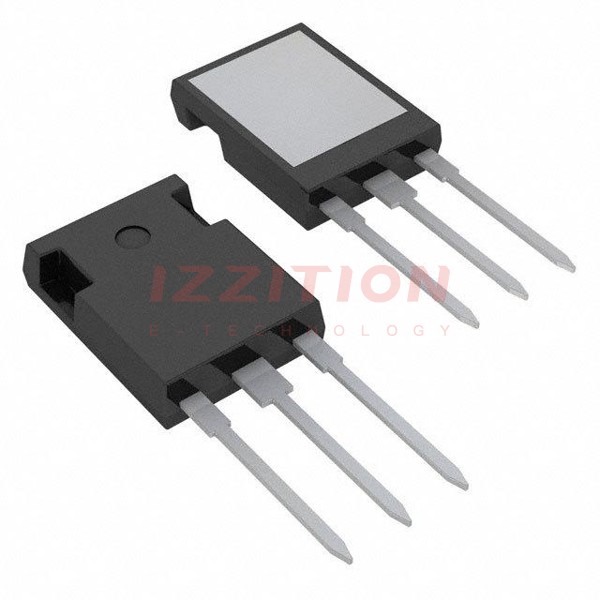

| Part Number | IXYR100N120C3 | IXYX100N120C3 | IXYK100N120C3 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 104 A | 188 A | 188 A |
| Current - Collector Pulsed (Icm) | 480 A | 490 A | 490 A |
| Vce(on) (Max) @ Vge, Ic | 3.5V @ 15V, 100A | 3.5V @ 15V, 100A | 3.5V @ 15V, 100A |
| Power - Max | 484 W | 1150 W | 1150 W |
| Switching Energy | 6.5mJ (on), 2.9mJ (off) | 6.5mJ (on), 2.9mJ (off) | 6.5mJ (on), 2.9mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 270 nC | 270 nC | 270 nC |
| Td (on/off) @ 25°C | 32ns/123ns | 32ns/123ns | 32ns/123ns |
| Test Condition | 600V, 100A, 1Ohm, 15V | 600V, 100A, 1Ohm, 15V | 600V, 100A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 Variant | TO-264-3, TO-264AA |
| Supplier Device Package | ISOPLUS247™ | PLUS247™-3 | TO-264 (IXYK) |
