| Part Number | IXYP10N65C3D1M | IXYP20N65C3D1M | IXYP15N65C3D1M | IXYP10N65C3D1 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| IGBT Type | - | PT | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 15 A | 18 A | 16 A | 30 A |
| Current - Collector Pulsed (Icm) | 50 A | 105 A | 80 A | 54 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 10A | 2.5V @ 15V, 20A | 2.5V @ 15V, 15A | 2.5V @ 15V, 10A |
| Power - Max | 53 W | 50 W | 48 W | 160 W |
| Switching Energy | 240µJ (on), 170µJ (off) | 430µJ (on), 350µJ (off) | 270µJ (on), 230µJ (off) | 240µJ (on), 110µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 18 nC | 30 nC | 19 nC | 18 nC |
| Td (on/off) @ 25°C | 20ns/77ns | 19ns/80ns | 15ns/68ns | 20ns/77ns |
| Test Condition | 400V, 10A, 50Ohm, 15V | 400V, 20A, 20Ohm, 15V | 400V, 15A, 20Ohm, 15V | 400V, 10A, 50Ohm, 15V |
| Reverse Recovery Time (trr) | 26 ns | 30 ns | 30 ns | 170 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

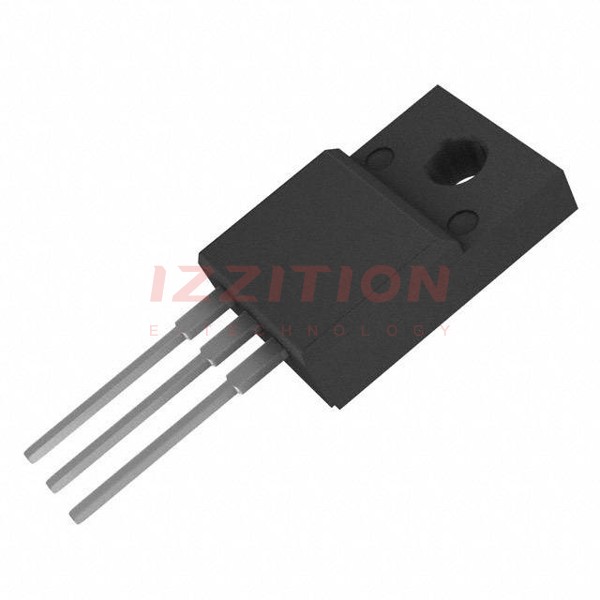

| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220 Isolated Tab | TO-220-3 | TO-220-3 | TO-220 |
