Please send RFQ , we will respond immediately.

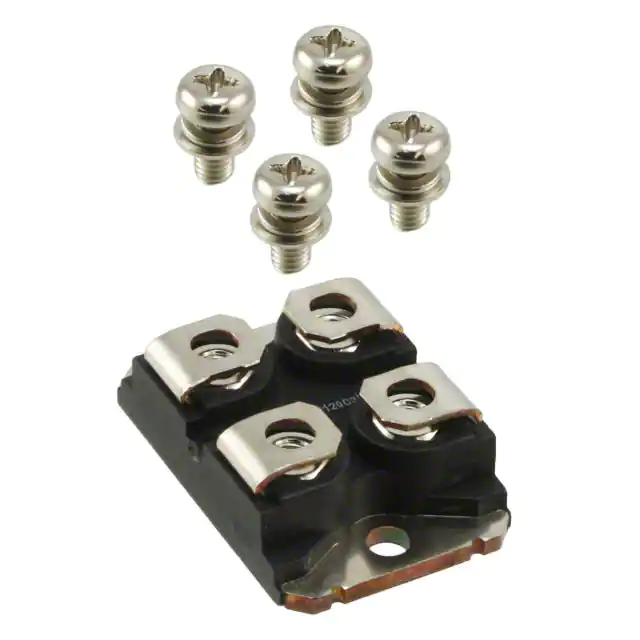

| Part Number | IXYN30N170CV1 | IXYX30N170CV1 | IXYN50N170CV1 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V | 1700 V |
| Current - Collector (Ic) (Max) | 88 A | 108 A | 120 A |
| Current - Collector Pulsed (Icm) | 275 A | 255 A | 485 A |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 30A | 3.7V @ 15V, 30A | 3.7V @ 15V, 50A |
| Power - Max | 680 W | 937 W | 880 W |
| Switching Energy | 5.9mJ (on), 3.3mJ (off) | 5.9mJ (on), 3.3mJ (off) | 8.7mJ (on), 5.6mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 140 nC | 140 nC | 260 nC |
| Td (on/off) @ 25°C | 28ns/150ns | 28ns/150ns | 22ns/236ns |
| Test Condition | 850V, 30A, 2.7Ohm, 15V | 850V, 30A, 2.7Ohm, 15V | 850V, 50A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | 160 ns | 160 ns | 255 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount | Through Hole | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC | TO-247-3 Variant | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B | PLUS247™-3 | SOT-227B |
