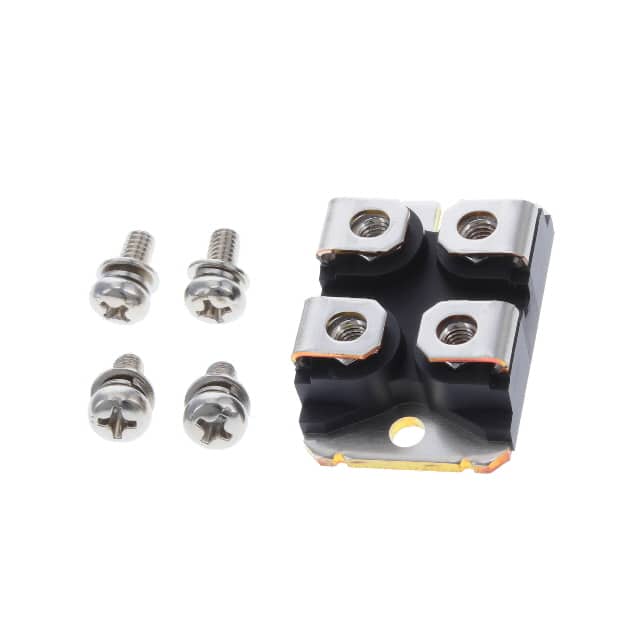

| Part Number | IXYN120N120C3 | IXYN100N120C3 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Configuration | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 240 A | 152 A |
| Power - Max | 1200 W | 830 W |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 120A | 3.5V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 25 µA | 25 µA |
| Input Capacitance (Cies) @ Vce | - | 6 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B | SOT-227B |
