IXYS-IXYN110N120C4 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	-
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	220 A
Power - Max:	830 W
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 110A
Current - Collector Cutoff (Max):	50 µA
Input Capacitance (Cies) @ Vce:	5.42 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	SOT-227

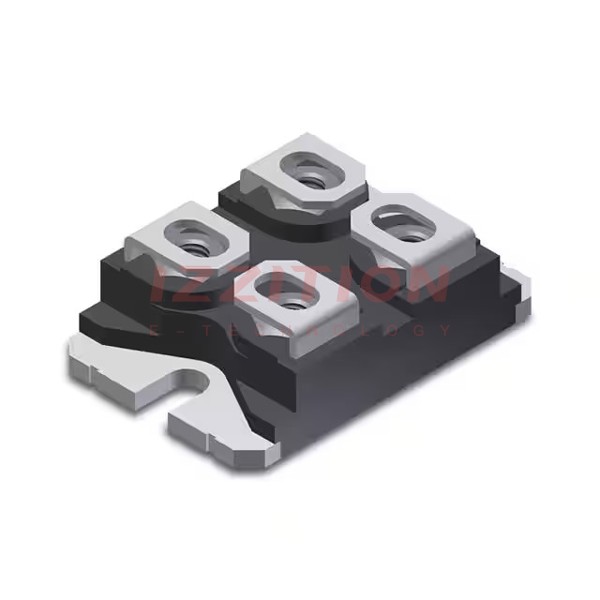

IXYS IXYN110N120C4
