IXYS-IXYL40N250CV1 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	2500 V
Current - Collector (Ic) (Max):	70 A
Current - Collector Pulsed (Icm):	400 A
Vce(on) (Max) @ Vge, Ic:	4V @ 15V, 40A
Power - Max:	577 W
Switching Energy:	11.7mJ (on), 6.9mJ (off)
Input Type:	Standard
Gate Charge:	270 nC
Td (on/off) @ 25°C:	21ns/200ns
Test Condition:	1250V, 40A, 1Ohm, 15V
Reverse Recovery Time (trr):	210 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	ISOPLUSi5-Pak™
Supplier Device Package:	ISOPLUSi5-Pak™

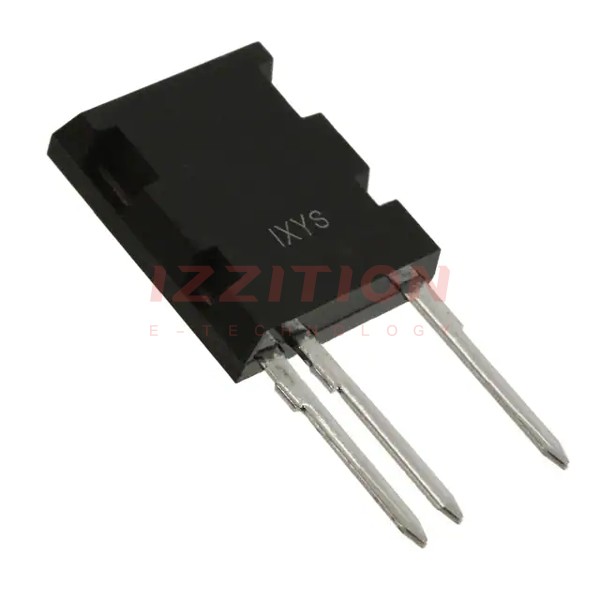

IXYS IXYL40N250CV1
