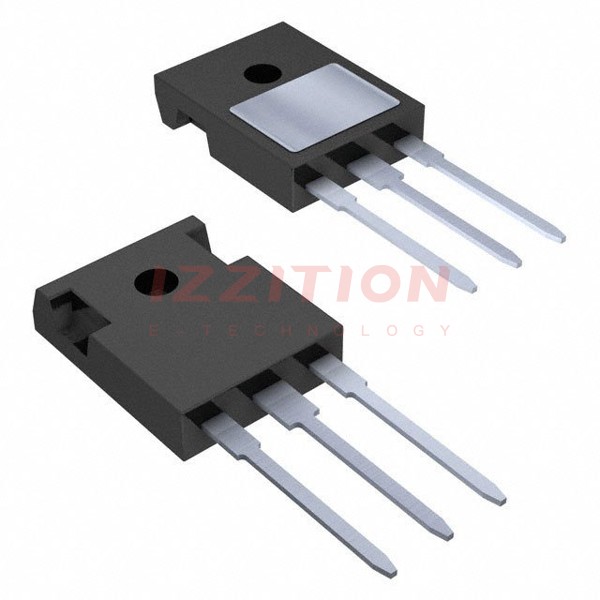

| Part Number | IXYJ20N120C3D1 | IXYH20N120C3D1 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 21 A | 36 A |
| Current - Collector Pulsed (Icm) | 84 A | 88 A |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 20A | 3.4V @ 15V, 20A |
| Power - Max | 105 W | 230 W |
| Switching Energy | 1.3mJ (on), 500µJ (off) | 1.3mJ (on), 500µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 53 nC | 53 nC |
| Td (on/off) @ 25°C | 20ns/90ns | 20ns/90ns |
| Test Condition | 600V, 20A, 10Ohm, 15V | 600V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 195 ns | 195 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | ISO247 | TO-247 (IXTH) |
