IXYS-IXYH8N250CV1HV - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	2500 V
Current - Collector (Ic) (Max):	29 A
Current - Collector Pulsed (Icm):	70 A
Vce(on) (Max) @ Vge, Ic:	4V @ 15V, 8A
Power - Max:	280 W
Switching Energy:	2.6mJ (on), 1.07mJ (off)
Input Type:	Standard
Gate Charge:	45 nC
Td (on/off) @ 25°C:	11ns/180ns
Test Condition:	1250V, 8A, 15Ohm, 15V
Reverse Recovery Time (trr):	5 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole

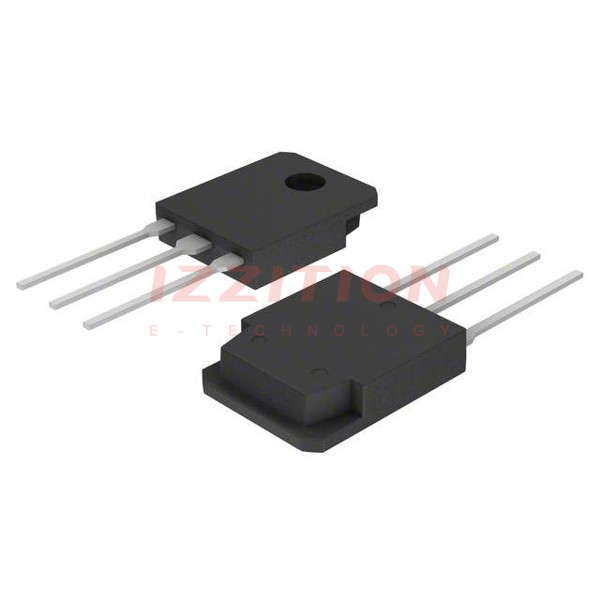

Package / Case:	TO-247-3
Supplier Device Package:	TO-247 (IXYH)

IXYS IXYH8N250CV1HV
