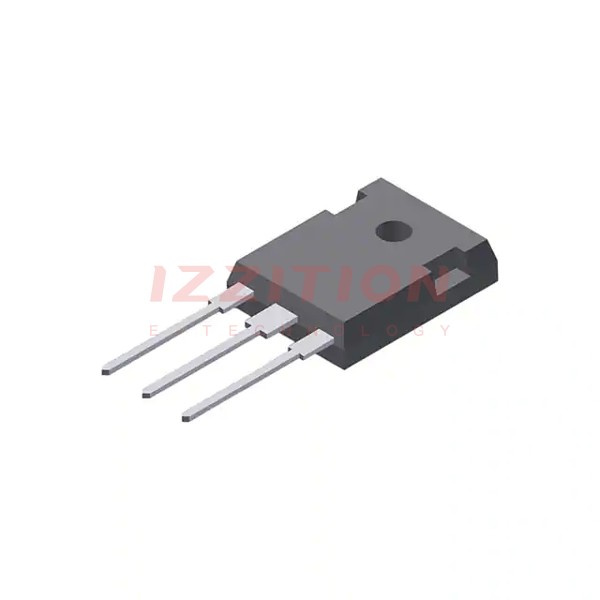

| Part Number | IXYH85N120A4 | IXYH85N120C4 | IXYH55N120A4 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | PT | - | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 300 A | 240 A | 175 A |
| Current - Collector Pulsed (Icm) | 520 A | 420 A | 350 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 85A | 2.5V @ 15V, 85A | 1.8V @ 15V, 55A |
| Power - Max | 1150 W | 1150 W | 650 W |
| Switching Energy | 4.9mJ (on), 8.3mJ (off) | 4.3mJ (on), 2mJ (off) | 2.3mJ (on), 5.3mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 200 nC | 192 nC | 110 nC |
| Td (on/off) @ 25°C | 40ns/400ns | 35ns/280ns | 23ns/300ns |
| Test Condition | 600V, 60A, 5Ohm, 15V | 600V, 50A, 5Ohm, 15V | 600V, 40A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 40 ns | 60 ns | 35 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 (IXTH) | TO-247 (IXTH) | TO-247 (IXTH) |
