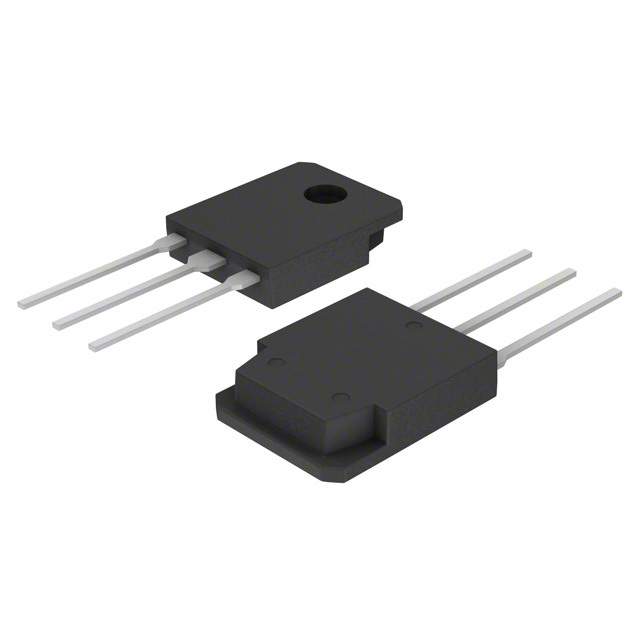

| Part Number | IXYH50N65C3D1 | IXYH50N65C3H1 | IXYH40N65C3D1 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | - | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 132 A | 130 A | 80 A |
| Current - Collector Pulsed (Icm) | 250 A | 250 A | 180 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 36A | 2.1V @ 15V, 36A | 2.35V @ 15V, 40A |
| Power - Max | 600 W | 600 W | 300 W |
| Switching Energy | 800µJ (on), 800µJ (off) | 1.3mJ (on), 370µJ (off) | 830µJ (on), 360µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 86 nC | 80 nC | 66 nC |
| Td (on/off) @ 25°C | 20ns/90ns | 22ns/80ns | 23ns/110ns |
| Test Condition | 400V, 36A, 5Ohm, 15V | 400V, 36A, 5Ohm, 15V | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 36 ns | 120 ns | 120 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 (IXTH) | TO-247 (IXTH) | TO-247 (IXTH) |
