IXYS-IXYH40N120A4 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	140 A
Current - Collector Pulsed (Icm):	275 A
Vce(on) (Max) @ Vge, Ic:	1.8V @ 15V, 32A
Power - Max:	600 W
Switching Energy:	2.3mJ (on), 3.75mJ (off)
Input Type:	Standard
Gate Charge:	90 nC
Td (on/off) @ 25°C:	22ns/204ns
Test Condition:	600V, 32A, 5Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole

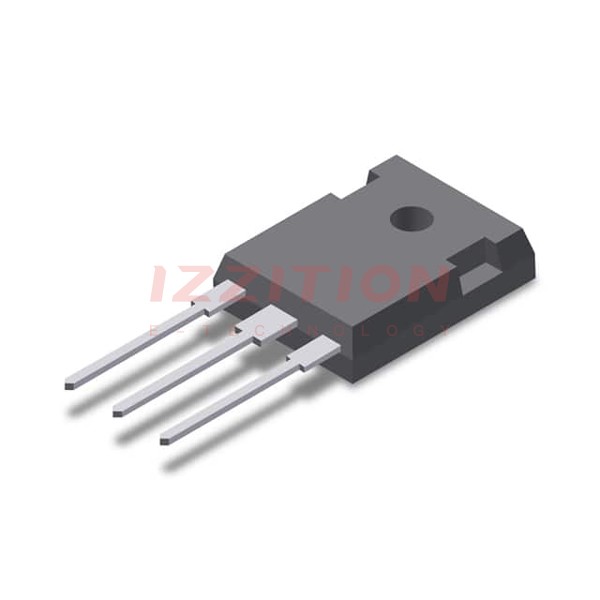

Package / Case:	TO-247-3
Supplier Device Package:	TO-247 (IXYH)

IXYS IXYH40N120A4
