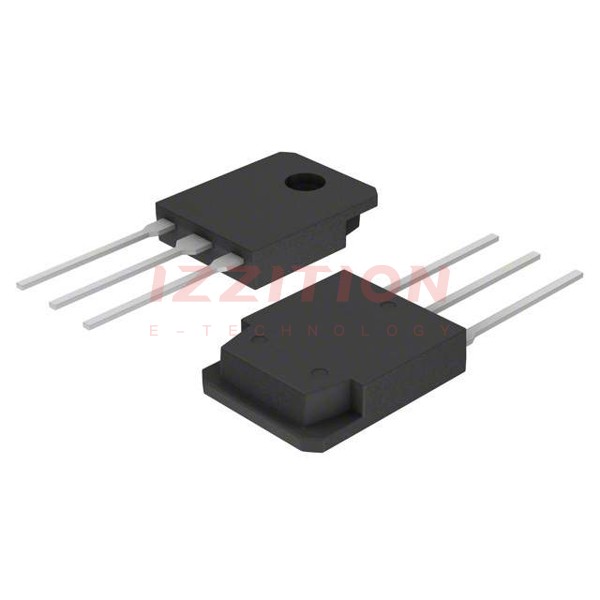

| Part Number | IXYH25N250CHV | IXYT25N250CHV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V | 2500 V |
| Current - Collector (Ic) (Max) | 95 A | 95 A |
| Current - Collector Pulsed (Icm) | 235 A | 235 A |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 25A | 4V @ 15V, 25A |
| Power - Max | 937 W | 937 W |
| Switching Energy | 8.3mJ (on), 7.3mJ (off) | 8.3mJ (on), 7.3mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 147 nC | 147 nC |
| Td (on/off) @ 25°C | 15ns/230ns | 15ns/230ns |
| Test Condition | 1250V, 25A, 5Ohm, 15V | 1250V, 25A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 34 ns | 34 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Surface Mount |
| Package / Case | TO-247-3 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-247 (IXTH) | TO-268 |
