IXYS-IXYH24N170CV1 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1700 V
Current - Collector (Ic) (Max):	58 A
Current - Collector Pulsed (Icm):	140 A
Vce(on) (Max) @ Vge, Ic:	4V @ 15V, 24A
Power - Max:	500 W
Switching Energy:	3.6mJ (on), 1.76mJ (off)
Input Type:	Standard
Gate Charge:	96 nC
Td (on/off) @ 25°C:	16ns/155ns
Test Condition:	850V, 24A, 5Ohm, 15V
Reverse Recovery Time (trr):	170 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 (IXYH)

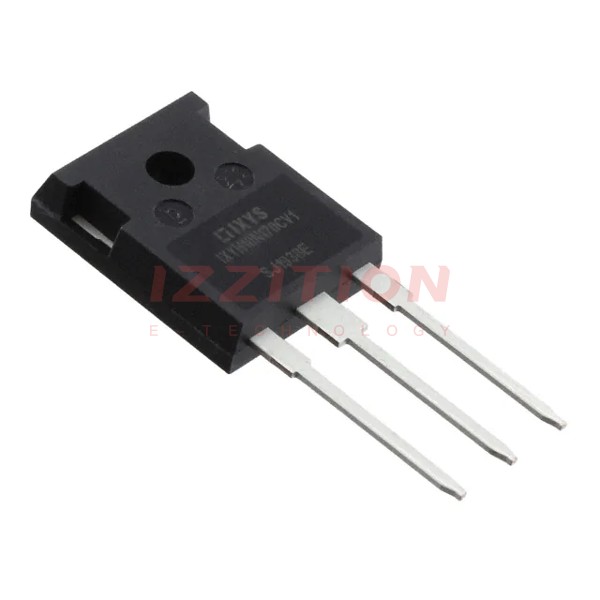

IXYS IXYH24N170CV1
