IXYS-IXYH24N170C - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1700 V
Current - Collector (Ic) (Max):	58 A
Current - Collector Pulsed (Icm):	145 A
Vce(on) (Max) @ Vge, Ic:	3.8V @ 15V, 20A
Power - Max:	500 W
Switching Energy:	4.9mJ (on), 1.95mJ (off)
Input Type:	Standard
Gate Charge:	96 nC
Td (on/off) @ 25°C:	12ns/160ns
Test Condition:	960V, 30A, 15Ohm, 15V
Reverse Recovery Time (trr):	30 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole

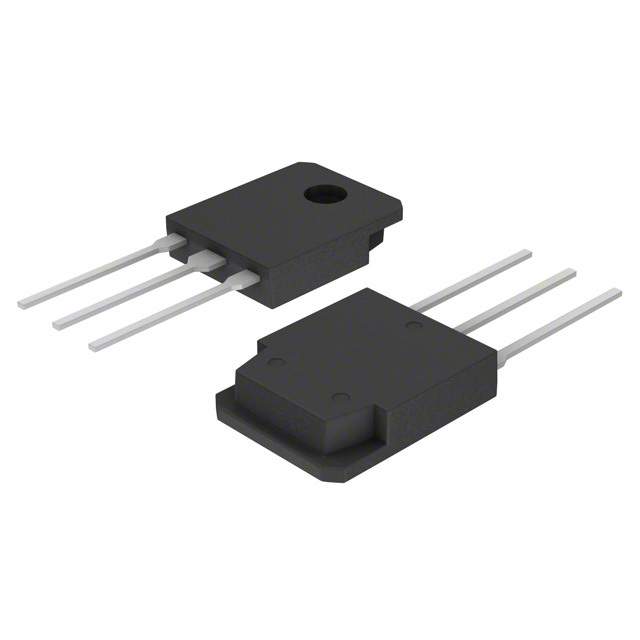

Package / Case:	TO-247-3
Supplier Device Package:	TO-247 (IXYH)

IXYS IXYH24N170C
