| Part Number | IXYH16N250CV1HV | IXYH12N250CV1HV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V | 2500 V |
| Current - Collector (Ic) (Max) | 35 A | 28 A |
| Current - Collector Pulsed (Icm) | 126 A | 80 A |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 16A | 4.5V @ 15V, 12A |
| Power - Max | 500 W | 310 W |
| Switching Energy | 4.75mJ (on), 3.9mJ (off) | 3.56mJ (on), 1.7mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 97 nC | 56 nC |
| Td (on/off) @ 25°C | 14ns/260ns | 12ns/167ns |
| Test Condition | 1250V, 16A, 10Ohm, 15V | 1250V, 12A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 19 ns | 16 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

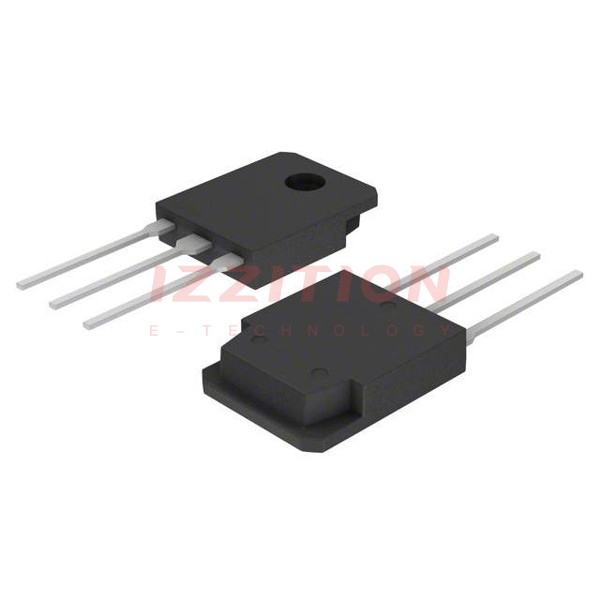

| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 (IXYH) | TO-247 (IXYH) |
