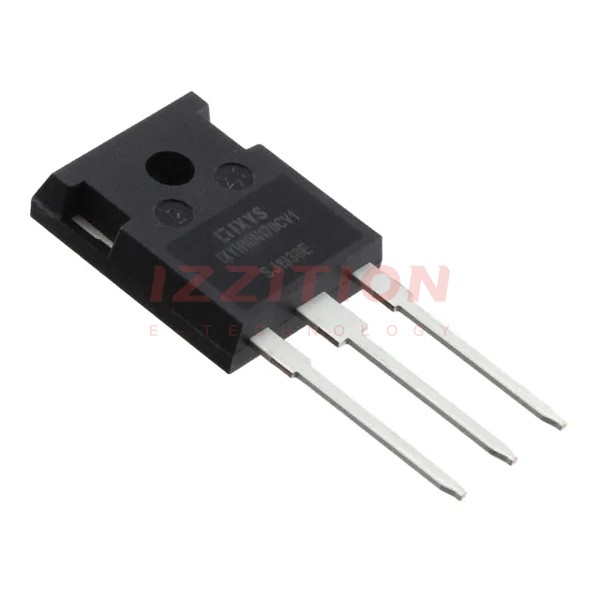

| Part Number | IXYH16N170CV1 | IXYH10N170CV1 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V |
| Current - Collector (Ic) (Max) | 40 A | 36 A |
| Current - Collector Pulsed (Icm) | 100 A | 84 A |
| Vce(on) (Max) @ Vge, Ic | 3.8V @ 15V, 16A | 3.8V @ 15V, 10A |
| Power - Max | 310 W | 280 W |
| Switching Energy | 2.1mJ (on), 1.5mJ (off) | 1.4mJ (on), 700µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 56 nC | 46 nC |
| Td (on/off) @ 25°C | 11ns/140ns | 14ns/130ns |
| Test Condition | 850V, 16A, 10Ohm, 15V | 850V, 10A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 150 ns | 160 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 (IXYH) | TO-247 (IXYH) |
