IXYS-IXYH120N65A5 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	290 A
Current - Collector Pulsed (Icm):	790 A
Vce(on) (Max) @ Vge, Ic:	1.35V @ 15V, 75A
Power - Max:	830 W
Switching Energy:	1.25mJ (on), 3.2mJ (off)
Input Type:	Standard
Gate Charge:	314 nC
Td (on/off) @ 25°C:	45ns/370ns
Test Condition:	400V, 60A, 3Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole

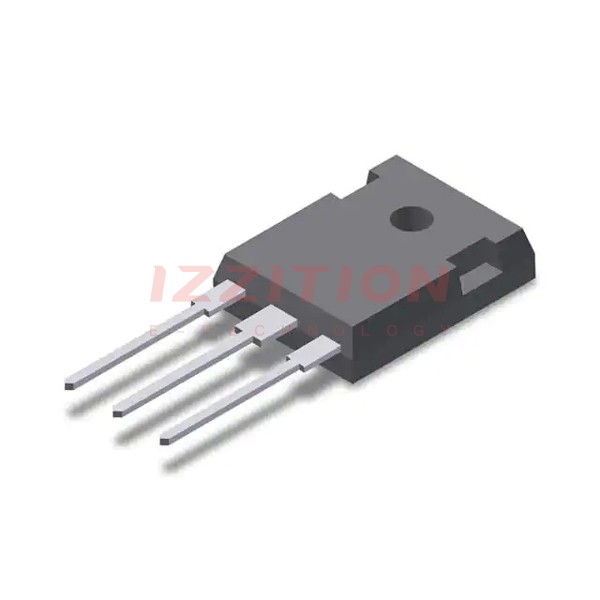

Package / Case:	TO-247-3
Supplier Device Package:	TO-247 (IXTH)

IXYS IXYH120N65A5
