| Part Number | IXYH100N65A3 | IXYH100N65C3 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | PT |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 240 A | 200 A |
| Current - Collector Pulsed (Icm) | 480 A | 420 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 70A | 2.3V @ 15V, 70A |
| Power - Max | 470 W | 830 W |
| Switching Energy | 3.15mJ (on), 2.2mJ (off) | 2.15mJ (on), 840µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 178 nC | 164 nC |
| Td (on/off) @ 25°C | 24ns/174ns | 28ns/106ns |
| Test Condition | 400V, 50A, 2Ohm, 15V | 400V, 50A, 3Ohm, 15V |
| Reverse Recovery Time (trr) | 64 ns | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

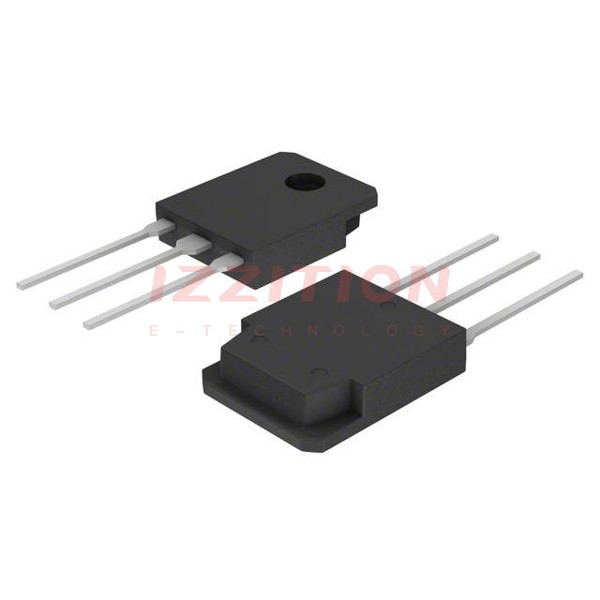

| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 (IXTH) | TO-247 (IXTH) |
