IXYS-IXYF30N450 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	4500 V
Current - Collector (Ic) (Max):	23 A
Current - Collector Pulsed (Icm):	190 A
Vce(on) (Max) @ Vge, Ic:	3.9V @ 15V, 30A
Power - Max:	230 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	88 nC
Td (on/off) @ 25°C:	38ns/168ns
Test Condition:	960V, 30A, 15Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	ISOPLUSi5-Pak™
Supplier Device Package:	ISOPLUS i4-PAC™

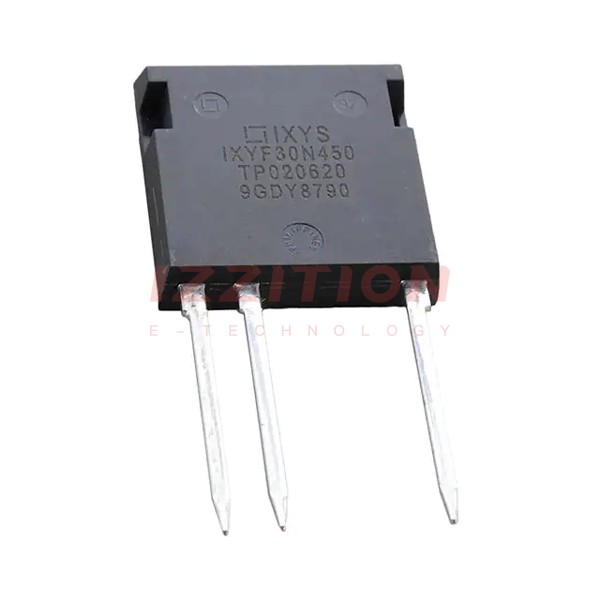

IXYS IXYF30N450
