| Part Number | IXYA8N90C3D1 | IXYP8N90C3D1 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 900 V | 900 V |
| Current - Collector (Ic) (Max) | 20 A | 20 A |
| Current - Collector Pulsed (Icm) | 48 A | 48 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 8A | 2.5V @ 15V, 8A |
| Power - Max | 125 W | 125 W |
| Switching Energy | 460µJ (on), 180µJ (off) | 460µJ (on), 180µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 13.3 nC | 13.3 nC |
| Td (on/off) @ 25°C | 16ns/40ns | 16ns/40ns |
| Test Condition | 450V, 8A, 30Ohm, 15V | 450V, 8A, 30Ohm, 15V |
| Reverse Recovery Time (trr) | 114 ns | 114 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | - |
| Mounting Type | Surface Mount | Through Hole |

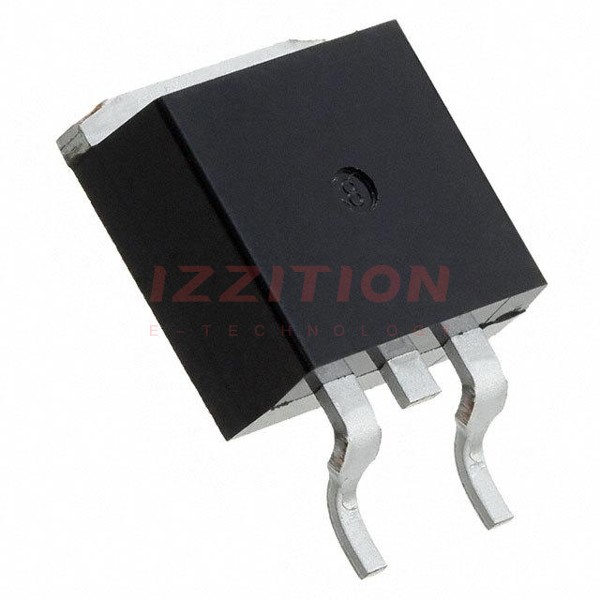

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 |
| Supplier Device Package | TO-263AA | TO-220-3 |
