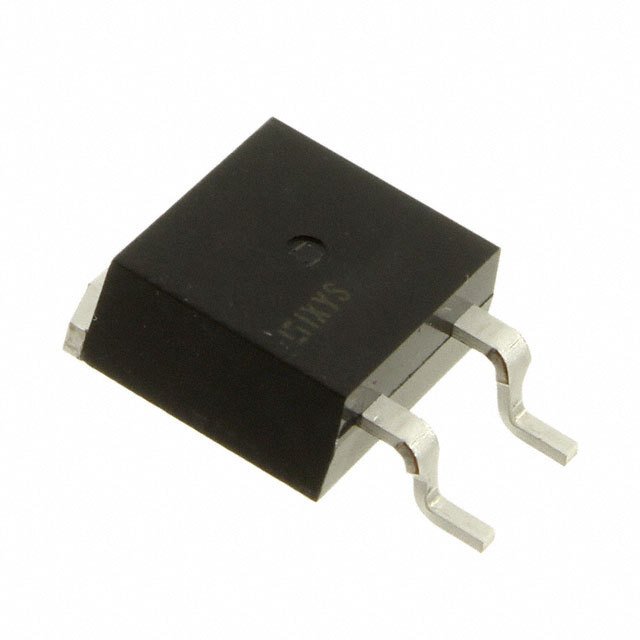

| Part Number | IXYA8N250CHV | IXYH8N250CHV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V | 2500 V |
| Current - Collector (Ic) (Max) | 29 A | 29 A |
| Current - Collector Pulsed (Icm) | 70 A | 70 A |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 8A | 4V @ 15V, 8A |
| Power - Max | 280 W | 280 W |
| Switching Energy | 2.6mJ (on), 1.07mJ (off) | 2.6mJ (on), 1.07mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 45 nC | 45 nC |
| Td (on/off) @ 25°C | 11ns/180ns | 11ns/180ns |
| Test Condition | 1250V, 8A, 15Ohm, 15V | 1250V, 8A, 15Ohm, 15V |
| Reverse Recovery Time (trr) | 5 ns | 5 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Through Hole |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-247-3 Variant |
| Supplier Device Package | TO-263HV | TO-247HV |
