| Part Number | IXYA20N120C4HV | IXYA20N120A4HV | IXYA20N120B4HV | IXYA20N120C3HV |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| IGBT Type | PT | PT | PT | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 68 A | 80 A | 76 A | 40 A |
| Current - Collector Pulsed (Icm) | 120 A | 135 A | 130 A | 96 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 20A | 1.9V @ 15V, 20A | 2.1V @ 15V, 20A | 3.4V @ 15V, 20A |
| Power - Max | 375 W | 375 W | 375 W | 278 W |
| Switching Energy | 4.4mJ (on), 1mJ (off) | 3.6mJ (on), 2.75mJ (off) | 3.9mJ (on), 1.6mJ (off) | 1.3mJ (on), 1mJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 44 nC | 46 nC | 44 nC | 53 nC |
| Td (on/off) @ 25°C | 14ns/160ns | 12ns/275ns | 15ns/200ns | 20ns/90ns |
| Test Condition | 960mV, 20A, 10Ohm, 15V | 800mV, 20A, 10Ohm, 15V | 960mV, 20A, 10Ohm, 15V | 600V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 53 ns | 54 ns | 47 ns | 29 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

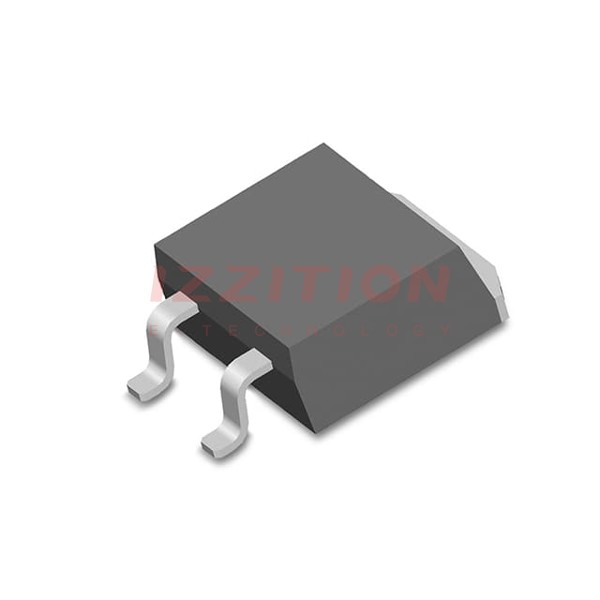

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263HV | TO-263HV | TO-263HV | TO-263HV |
