| Part Number | IXYA20N120C3HV | IXYA20N120C4HV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 40 A | 68 A |
| Current - Collector Pulsed (Icm) | 96 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 20A | 2.5V @ 15V, 20A |
| Power - Max | 278 W | 375 W |
| Switching Energy | 1.3mJ (on), 1mJ (off) | 4.4mJ (on), 1mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 53 nC | 44 nC |
| Td (on/off) @ 25°C | 20ns/90ns | 14ns/160ns |
| Test Condition | 600V, 20A, 10Ohm, 15V | 960mV, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 29 ns | 53 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

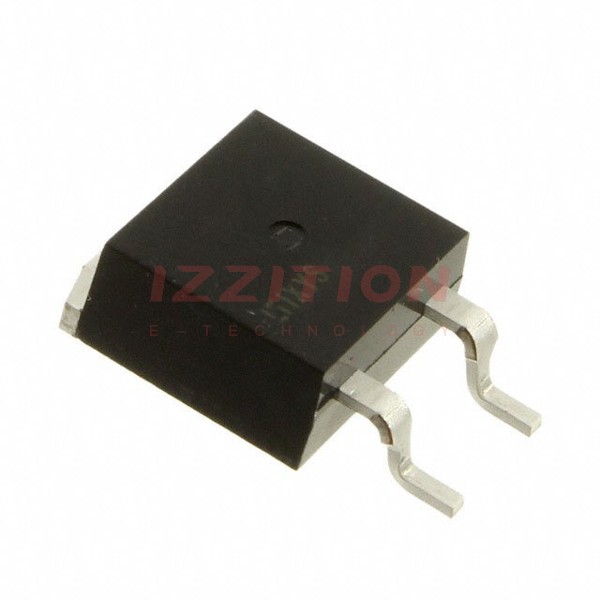

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263HV | TO-263HV |
