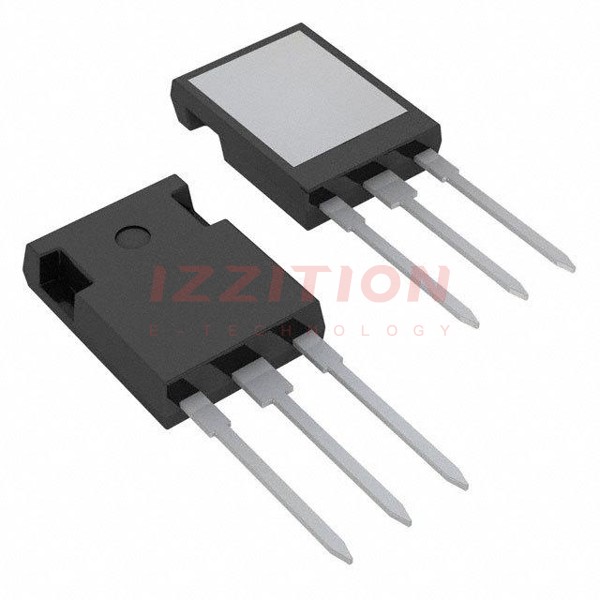

| Part Number | IXXR100N60B3H1 | IXXX100N60B3H1 | IXXK100N60B3H1 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | PT | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 145 A | 200 A | 200 A |
| Current - Collector Pulsed (Icm) | 440 A | 440 A | 440 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 70A | 1.8V @ 15V, 70A | 1.8V @ 15V, 70A |
| Power - Max | 400 W | 695 W | 695 W |
| Switching Energy | 1.9mJ (on), 2mJ (off) | 1.9mJ (on), 2mJ (off) | 1.9mJ (on), 2mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 143 nC | 143 nC | 143 nC |
| Td (on/off) @ 25°C | 30ns/120ns | 30ns/120ns | 30ns/120ns |
| Test Condition | 360V, 70A, 2Ohm, 15V | 360V, 70A, 2Ohm, 15V | 360V, 70A, 2Ohm, 15V |
| Reverse Recovery Time (trr) | 140 ns | 140 ns | 140 ns |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 Variant | TO-264-3, TO-264AA Variation |
| Supplier Device Package | ISOPLUS247™ | PLUS247™-3 | TO-264 (IXXK) |
