IXYS-IXTX1R4N450HV - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	4500 V
Current - Continuous Drain (Id) @ 25°C:	1.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	40Ohm @ 50mA, 10V
Vgs(th) (Max) @ Id:	6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	88 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3300 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	960W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247PLUS-HV
Package / Case:	TO-247-3 Variant

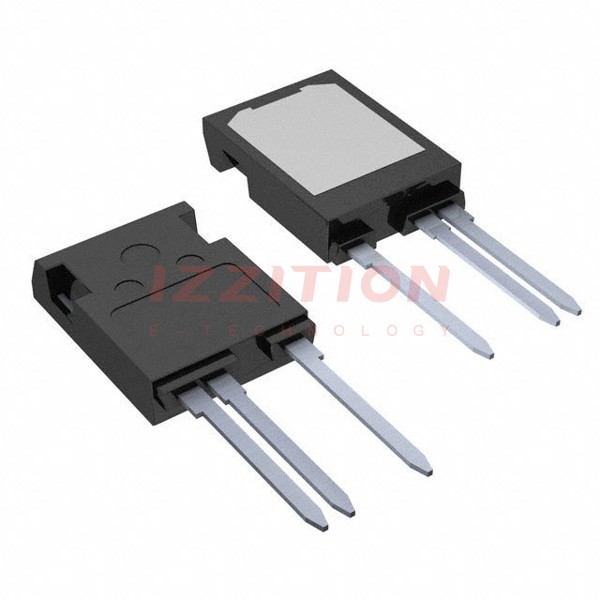

IXYS IXTX1R4N450HV
