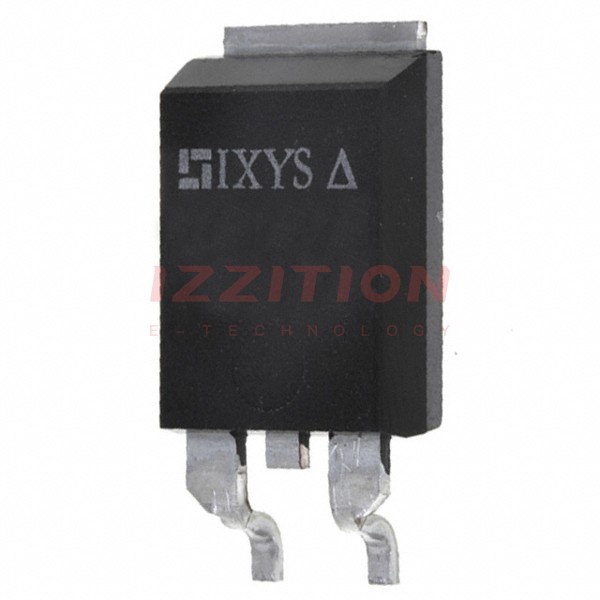

| Part Number | IXTV250N075TS | IXTV250N075T |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 250A (Tc) | 250A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 50A, 10V | 4mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 10 V | 200 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9900 pF @ 25 V | 9900 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 550W (Tc) | 550W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Through Hole |
| Supplier Device Package | PLUS-220SMD | PLUS220 |
| Package / Case | PLUS-220SMD | TO-220-3, Short Tab |
