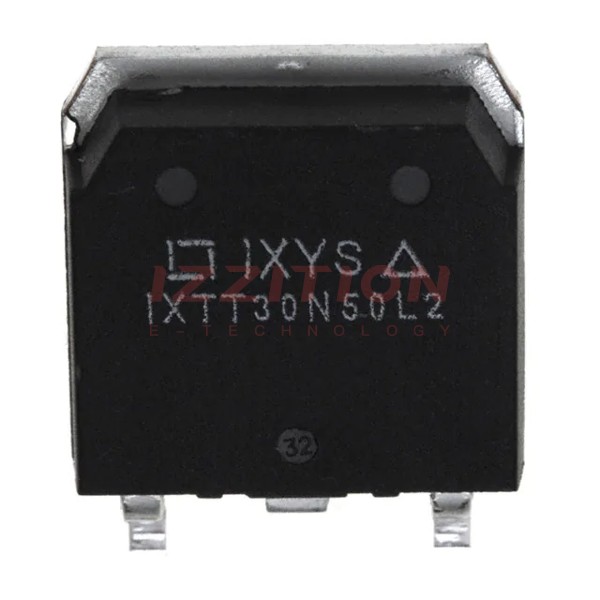

| Part Number | IXTT30N50L2 | IXTT30N60L2 | IXTT40N50L2 | IXTT30N50L |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 600 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | 30A (Tc) | 40A (Tc) | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 15A, 10V | 240mOhm @ 15A, 10V | 170mOhm @ 20A, 10V | 200mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 240 nC @ 10 V | 335 nC @ 10 V | 320 nC @ 10 V | 240 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8100 pF @ 25 V | 10700 pF @ 25 V | 10400 pF @ 25 V | 10200 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 400W (Tc) | 540W (Tc) | 540W (Tc) | 400W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | TO-268AA | TO-268AA | TO-268AA | TO-268AA |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
