| Part Number | IXTQ26N50P | IXTQ36N50P | IXTQ26N60P | IXTQ16N50P | IXTQ22N50P |
|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 500 V | 600 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) | 36A (Tc) | 26A (Tc) | 16A (Tc) | 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 230mOhm @ 13A, 10V | 170mOhm @ 500mA, 10V | 270mOhm @ 500mA, 10V | 400mOhm @ 8A, 10V | 270mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5.5V @ 250µA | 5.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V | 85 nC @ 10 V | 72 nC @ 10 V | 43 nC @ 10 V | 50 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3600 pF @ 25 V | 5500 pF @ 25 V | 4150 pF @ 25 V | 2250 pF @ 25 V | 2630 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 400W (Tc) | 540W (Tc) | 460W (Tc) | 300W (Tc) | 350W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

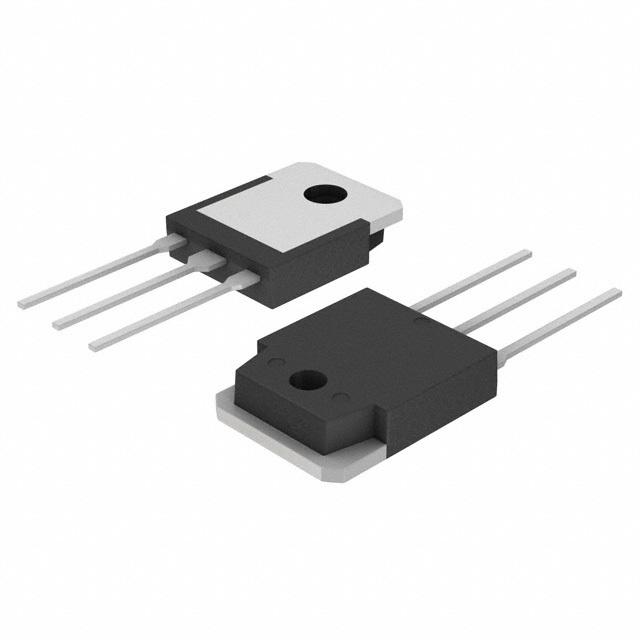

| Supplier Device Package | TO-3P | TO-3P | TO-3P | TO-3P | TO-3P |
| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
