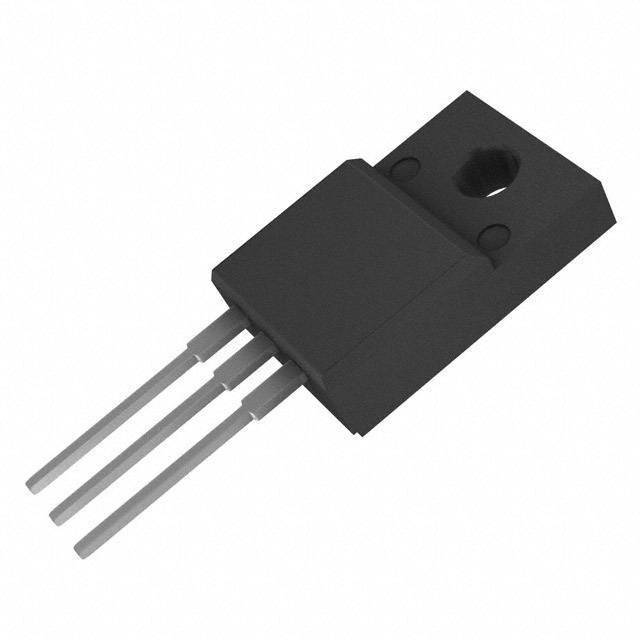

| Part Number | IXTP14N60PM | IXTP18N60PM | IXTP10N60PM | IXTP14N60P |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) | 9A (Tc) | 5A (Tc) | 14A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 7A, 10V | 420mOhm @ 9A, 10V | 740mOhm @ 5A, 10V | 550mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA | 5.5V @ 250µA | 5V @ 100µA | 5.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V | 49 nC @ 10 V | 32 nC @ 10 V | 36 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2500 pF @ 25 V | 2500 pF @ 25 V | 1610 pF @ 25 V | 2500 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 75W (Tc) | 90W (Tc) | 50W (Tc) | 300W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220 Isolated Tab | TO-220 Isolated Tab | TO-220-3 | TO-220-3 |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 | TO-220-3 |
