| Part Number | IXTN102N65X2 | IXTK102N65X2 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 76A (Tc) | 102A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 51A, 10V | 30mOhm @ 51A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 152 nC @ 10 V | 152 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 10900 pF @ 25 V | 10900 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 595AW (Tc) | 1040W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Through Hole |

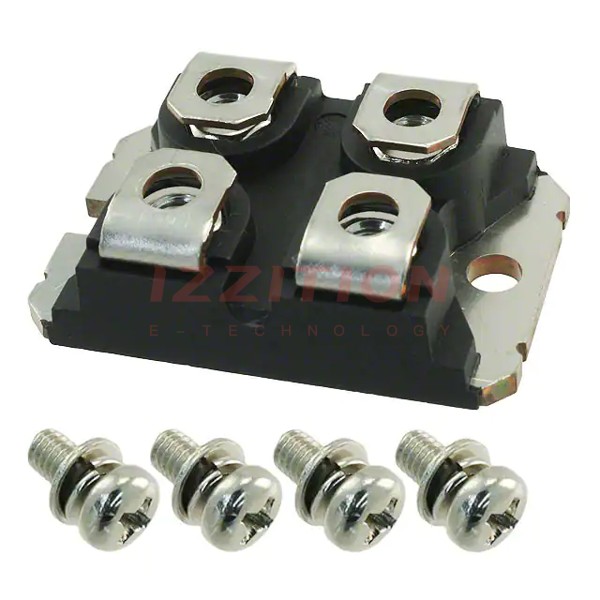

| Supplier Device Package | SOT-227 | TO-264 (IXTK) |
| Package / Case | SOT-227-4, miniBLOC | TO-264-3, TO-264AA |
