IXYS-IXTL2X240N055T - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	55V
Current - Continuous Drain (Id) @ 25°C:	140A
Rds On (Max) @ Id, Vgs:	4.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	170nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	7600pF @ 25V
Power - Max:	150W
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	ISOPLUSi5-Pak™
Supplier Device Package:	ISOPLUSi5-Pak™

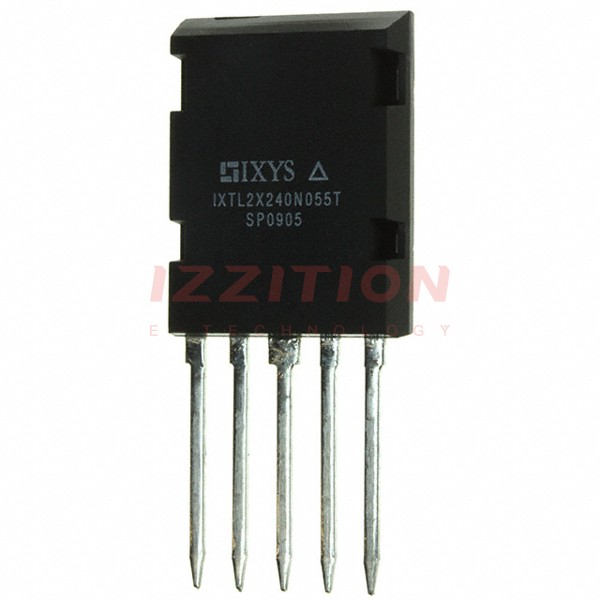

IXYS IXTL2X240N055T
