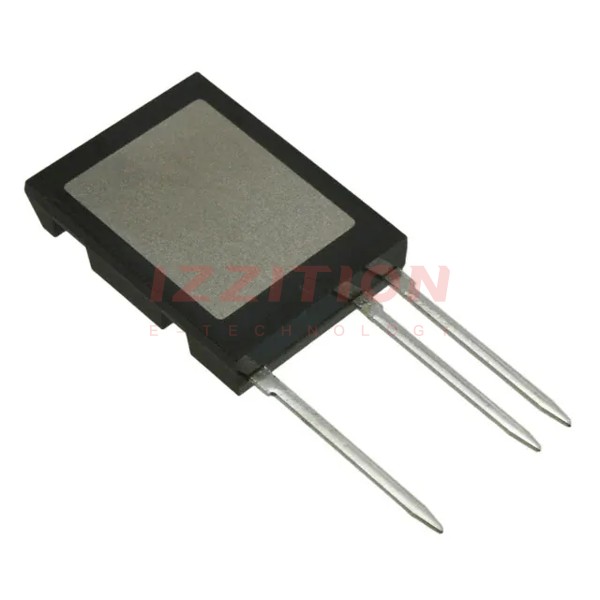

| Part Number | IXTL2N450 | IXTL2N470 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 4500 V | 4700 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) | 2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 23Ohm @ 1A, 10V | 20Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 6V @ 250µA | 6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 156 nC @ 10 V | 180 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6900 pF @ 25 V | 6860 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 220W (Tc) | 220W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUSi5-Pak™ | ISOPLUSi5-Pak™ |
| Package / Case | ISOPLUSi5-Pak™ | ISOPLUSi5-Pak™ |
