| Part Number | IXTJ4N150 | IXTJ6N150 | IXTH4N150 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1500 V | 1500 V | 1500 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Tc) | 3A (Tc) | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 6Ohm @ 2A, 10V | 3.85Ohm @ 3A, 10V | 6Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 44.5 nC @ 10 V | 67 nC @ 10 V | 44.5 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1576 pF @ 25 V | 2230 pF @ 25 V | 1576 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 110W (Tc) | 125W (Tc) | 280W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

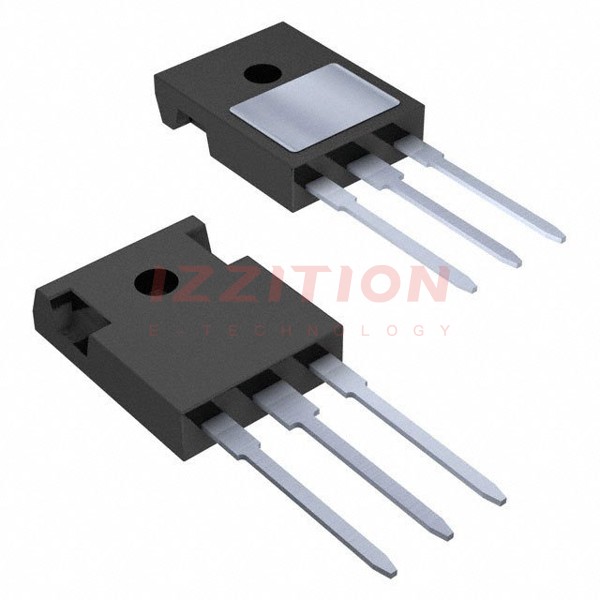

| Supplier Device Package | TO-247 | TO-247 | TO-247 (IXTH) |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
