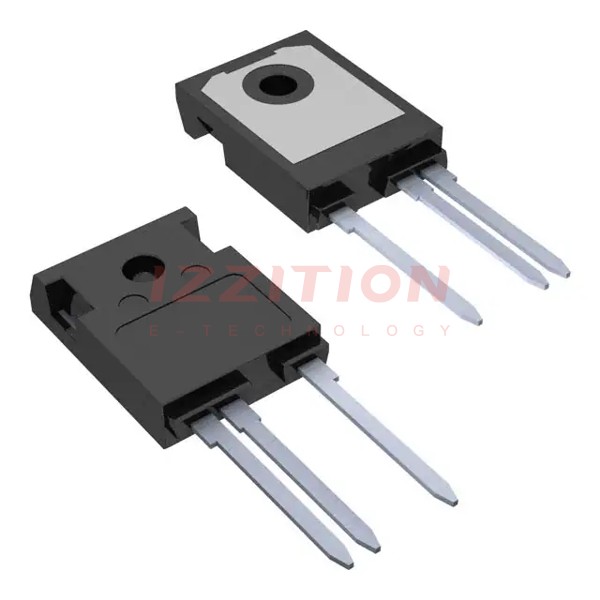

| Part Number | IXTH1N200P3HV | IXTH1N300P3HV | IXTH3N200P3HV |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 2000 V | 3000 V | 2000 V |
| Current - Continuous Drain (Id) @ 25°C | 1A (Tc) | 1A (Tc) | 3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 40Ohm @ 500mA, 10V | 50Ohm @ 500mA, 10V | 8Ohm @ 1.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23.5 nC @ 10 V | 30.6 nC @ 10 V | 70 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 646 pF @ 25 V | 895 pF @ 25 V | 1860 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 125W (Tc) | 195W (Tc) | 520W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-247HV | TO-247HV | TO-247 (IXTH) |
| Package / Case | TO-247-3 Variant | TO-247-3 Variant | TO-247-3 |
