IXYS-IXTF02N450 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	4500 V
Current - Continuous Drain (Id) @ 25°C:	200mA (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	750Ohm @ 10mA, 10V
Vgs(th) (Max) @ Id:	6.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	10.4 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	256 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	78W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	ISOPLUS i4-PAC™
Package / Case:	i4-Pac™-5 (3 Leads)

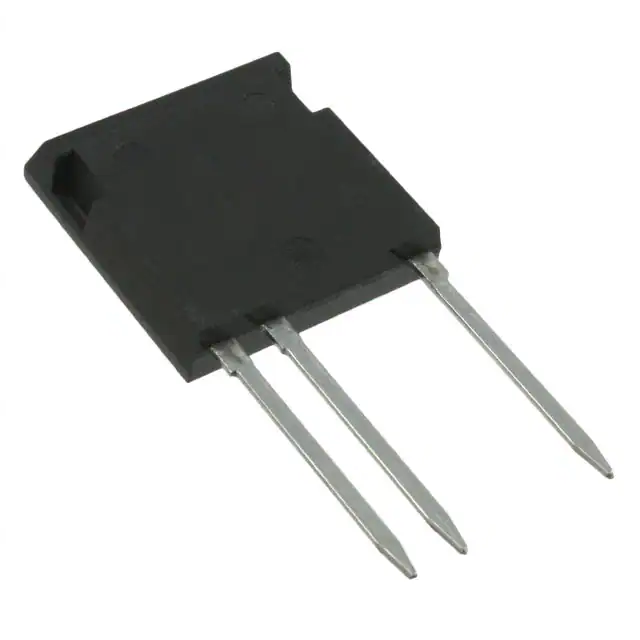

IXYS IXTF02N450
