Please send RFQ , we will respond immediately.

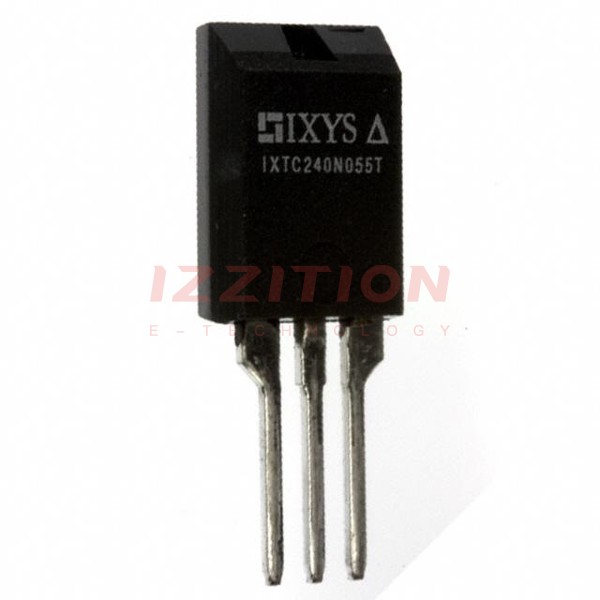

| Part Number | IXTC240N055T | IXTC280N055T | IXTH240N055T | IXTC220N055T |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 55 V | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 132A (Tc) | 145A (Tc) | 240A (Tc) | 130A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 50A, 10V | 3.6mOhm @ 50A, 10V | 3.6mOhm @ 25A, 10V | 4.4mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 170 nC @ 10 V | 200 nC @ 10 V | 170 nC @ 10 V | 158 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7600 pF @ 25 V | 9800 pF @ 25 V | 7600 pF @ 25 V | 7200 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 150W (Tc) | 160W (Tc) | 480W (Tc) | 150W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS220™ | ISOPLUS220™ | TO-247 (IXTH) | ISOPLUS220™ |
| Package / Case | ISOPLUS220™ | ISOPLUS220™ | TO-247-3 | ISOPLUS220™ |
