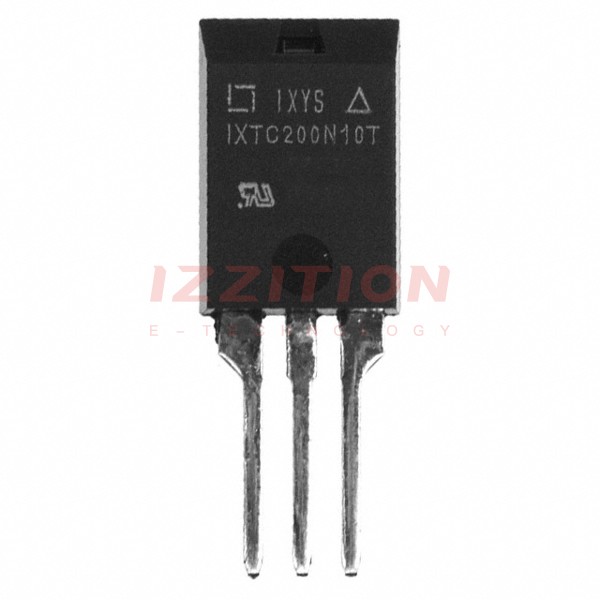

| Part Number | IXTC200N10T | IXTH200N10T | IXTF200N10T |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 101A (Tc) | 200A (Tc) | 90A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 6.3mOhm @ 50A, 10V | 5.5mOhm @ 50A, 10V | 7mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 152 nC @ 10 V | 152 nC @ 10 V | 152 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 9400 pF @ 25 V | 9400 pF @ 25 V | 9400 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 160W (Tc) | 550W (Tc) | 156W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS220™ | TO-247 (IXTH) | ISOPLUS i4-PAC™ |
| Package / Case | ISOPLUS220™ | TO-247-3 | i4-Pac™-5 |
