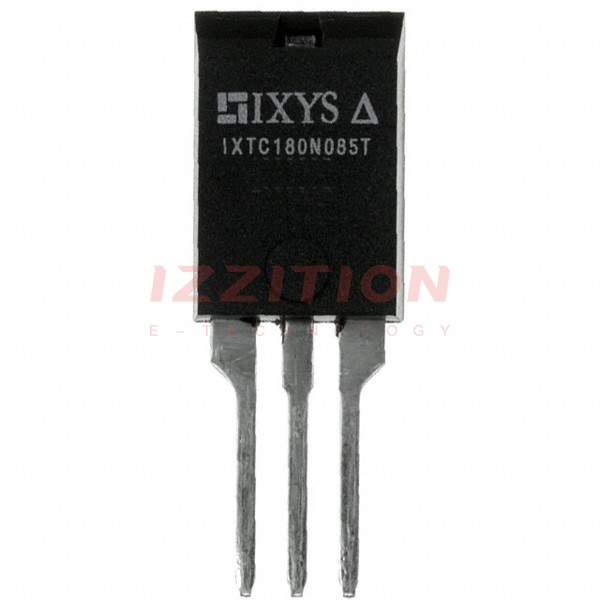

| Part Number | IXTC180N085T | IXTH180N085T | IXTC160N085T | IXTC180N055T |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 85 V | 85 V | 85 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) | 180A (Tc) | 110A (Tc) | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | - | - |
| Rds On (Max) @ Id, Vgs | 6.1mOhm @ 25A, 10V | 5.5mOhm @ 25A, 10V | - | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 170 nC @ 10 V | 170 nC @ 10 V | - | - |
| Vgs (Max) | ±20V | ±20V | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 8800 pF @ 25 V | 7500 pF @ 25 V | - | - |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 150W (Tc) | 430W (Tc) | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS220™ | TO-247 (IXTH) | ISOPLUS220™ | ISOPLUS220™ |
| Package / Case | ISOPLUS220™ | TO-247-3 | ISOPLUS220™ | ISOPLUS220™ |
