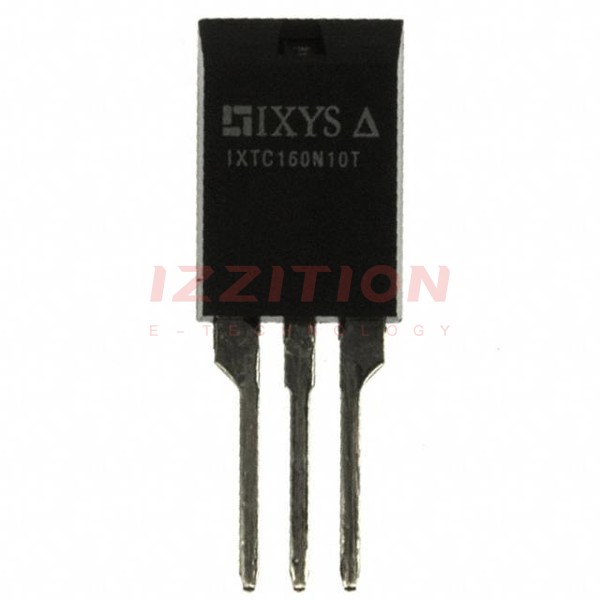

| Part Number | IXTC160N10T | IXTH160N10T | IXTC180N10T |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 83A (Tc) | 160A (Tc) | 90A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | - |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 25A, 10V | 7mOhm @ 25A, 10V | - |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4.5V @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | 132 nC @ 10 V | 132 nC @ 10 V | - |
| Vgs (Max) | ±20V | ±30V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 6600 pF @ 25 V | 6600 pF @ 25 V | - |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 140W (Tc) | 430W (Tc) | 150W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS220™ | TO-247 (IXTH) | ISOPLUS220™ |
| Package / Case | ISOPLUS220™ | TO-247-3 | ISOPLUS220™ |
