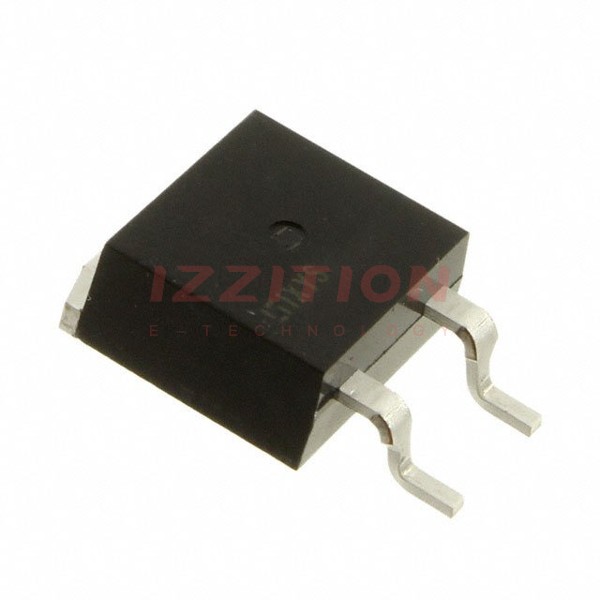

| Part Number | IXTA3N120HV | IXTA3N150HV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1200 V | 1500 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) | 3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 4.5Ohm @ 500mA, 10V | 7.3Ohm @ 1.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V | 38.6 nC @ 10 V |
| Vgs (Max) | ±20V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1100 pF @ 25 V | 1375 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 200W (Tc) | 250W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | TO-263HV | TO-263AA |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
