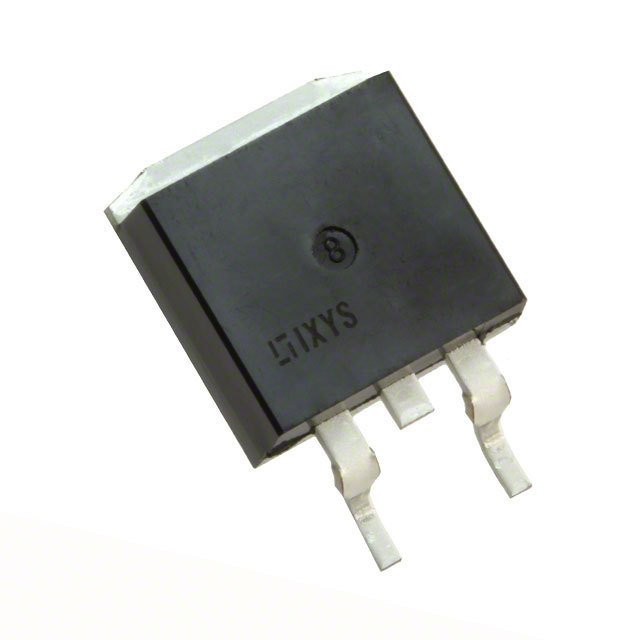

| Part Number | IXTA270N04T4 | IXTA230N04T4 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 270A (Tc) | 230A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.2mOhm @ 50A, 10V | 2.9mOhm @ 115A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 182 nC @ 10 V | 140 nC @ 10 V |
| Vgs (Max) | ±15V | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 9140 pF @ 25 V | 7400 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 375W (Tc) | 340W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | TO-263AA | TO-263AA |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
