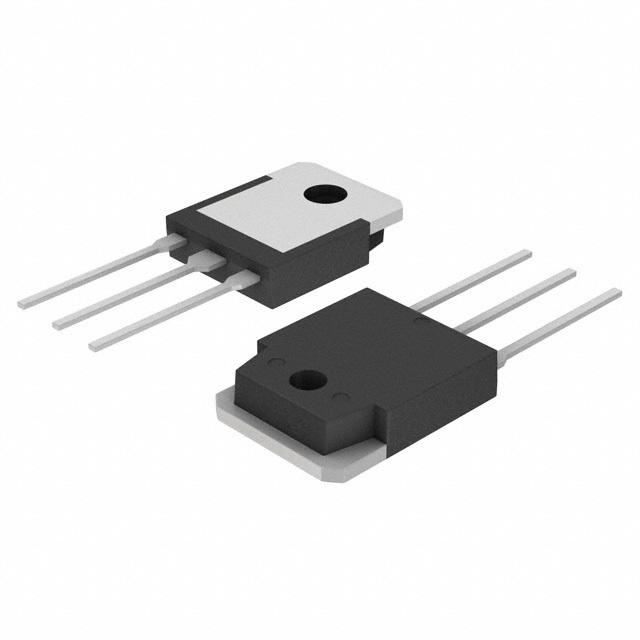

| Part Number | IXSQ20N60B2D1 | IXSA20N60B2D1 | IXSH20N60B2D1 | IXSP20N60B2D1 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | PT | PT | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 35 A | 35 A | 35 A | 35 A |
| Current - Collector Pulsed (Icm) | - | 60 A | 60 A | 60 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 16A | 2.5V @ 15V, 16A | 2.5V @ 15V, 16A | 2.5V @ 15V, 16A |
| Power - Max | 190 W | 190 W | 190 W | 190 W |
| Switching Energy | 380µJ (off) | 380µJ (off) | 380µJ (off) | 380µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 33 nC | 33 nC | 33 nC | 33 nC |
| Td (on/off) @ 25°C | 30ns/116ns | 30ns/116ns | 30ns/116ns | 30ns/116ns |
| Test Condition | - | 480V, 16A, 10Ohm, 15V | 480V, 16A, 10Ohm, 15V | 480V, 16A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 30 ns | 30 ns | 30 ns | 30 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-247-3 | TO-220-3 |
| Supplier Device Package | TO-3P | TO-263AA | TO-247AD | TO-220-3 |
