IXYS-IXLF19N250A - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	NPT
Voltage - Collector Emitter Breakdown (Max):	2500 V
Current - Collector (Ic) (Max):	32 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	3.9V @ 15V, 19A
Power - Max:	250 W
Switching Energy:	15mJ (on), 30mJ (off)
Input Type:	Standard
Gate Charge:	142 nC
Td (on/off) @ 25°C:	-
Test Condition:	1500V, 19A, 47Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	i4-Pac™-5 (3 Leads)
Supplier Device Package:	ISOPLUS i4-PAC™

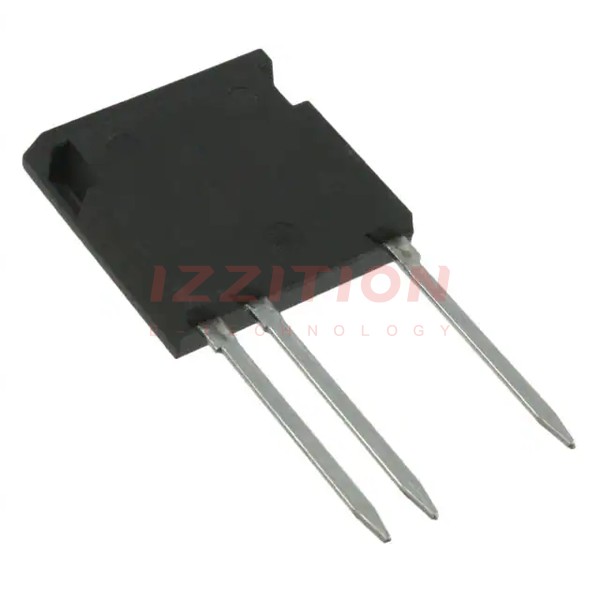

IXYS IXLF19N250A
