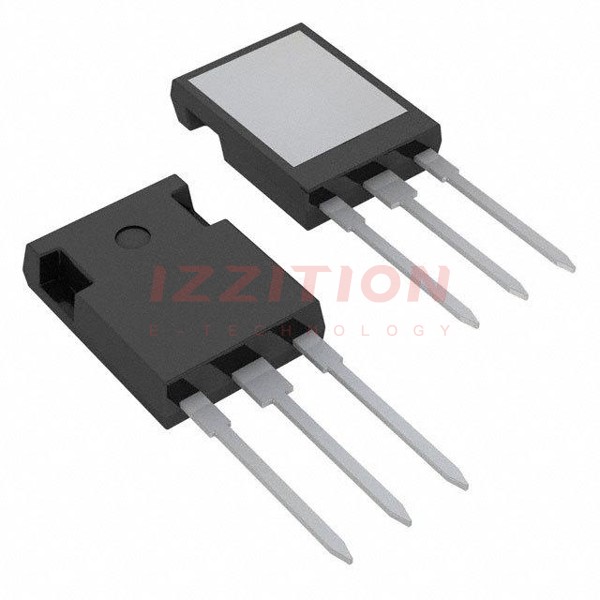

| Part Number | IXGR60N60B2D1 | IXGR60N60C2D1 | IXGR40N60B2D1 | IXGR50N60B2D1 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | PT | PT | PT | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 75 A | 75 A | 60 A | 68 A |
| Current - Collector Pulsed (Icm) | 300 A | 300 A | 200 A | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 50A | 2.7V @ 15V, 50A | 1.9V @ 15V, 30A | 2.2V @ 15V, 40A |
| Power - Max | 250 W | 250 W | 167 W | 200 W |
| Switching Energy | 1mJ (off) | 490µJ (off) | 400µJ (off) | 550µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 170 nC | 140 nC | 100 nC | 140 nC |
| Td (on/off) @ 25°C | 28ns/160ns | 18ns/95ns | 18ns/130ns | 18ns/190ns |
| Test Condition | 400V, 50A, 3.3Ohm, 15V | 400V, 50A, 2Ohm, 15V | 400V, 30A, 3.3Ohm, 15V | 480V, 40A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 35 ns | 35 ns | 25 ns | 35 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | ISOPLUS247™ | ISOPLUS247™ | ISOPLUS247™ | ISOPLUS247™ |
