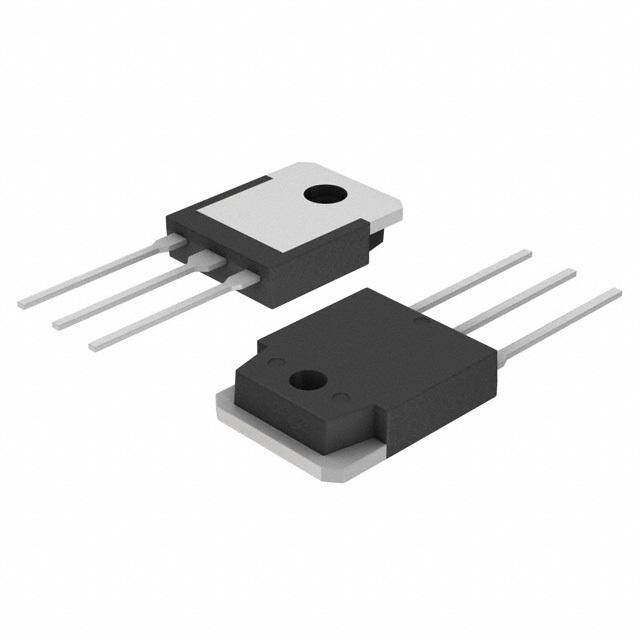

| Part Number | IXGQ35N120BD1 | IXGR35N120BD1 | IXGK35N120BD1 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 75 A | 54 A | 70 A |
| Current - Collector Pulsed (Icm) | 200 A | 200 A | 140 A |
| Vce(on) (Max) @ Vge, Ic | 3.3V @ 15V, 35A | 3.5V @ 15V, 35A | 3.3V @ 15V, 35A |
| Power - Max | 400 W | 250 W | 350 W |
| Switching Energy | 900µJ (on), 3.8mJ (off) | 900µJ (on), 3.8mJ (off) | 3.8mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 140 nC | 140 nC | 170 nC |
| Td (on/off) @ 25°C | 40ns/270ns | 40ns/270ns | 50ns/180ns |
| Test Condition | 960V, 35A, 3Ohm, 15V | 960V, 35A, 3Ohm, 15V | 960V, 35A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 40 ns | 40 ns | 60 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 | TO-247-3 | TO-264-3, TO-264AA |
| Supplier Device Package | TO-3P | ISOPLUS247™ | TO-264 (IXGK) |
