IXYS-IXGN60N60C2 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	PT
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	75 A
Power - Max:	480 W
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 50A
Current - Collector Cutoff (Max):	650 µA
Input Capacitance (Cies) @ Vce:	4.75 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	SOT-227B

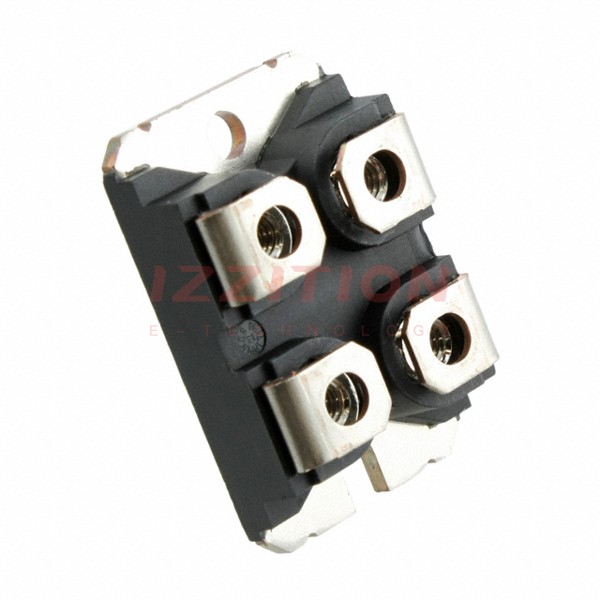

IXYS IXGN60N60C2
