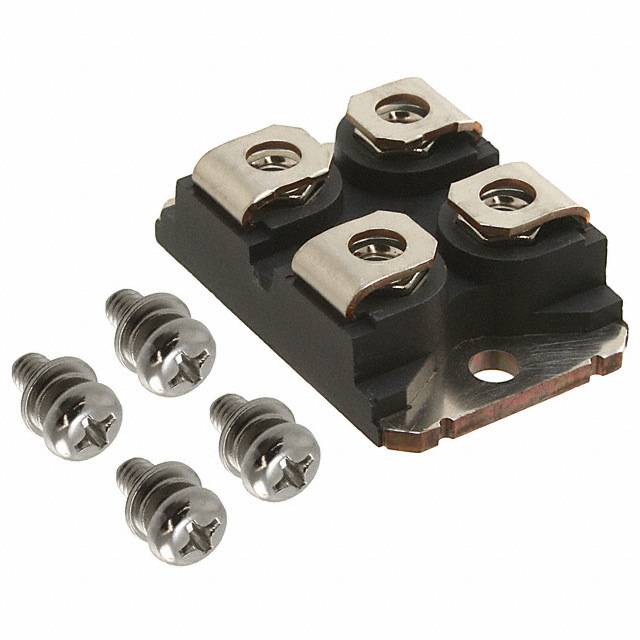

| Part Number | IXGN200N60B3 | IXGN400N60B3 | IXGN200N60B |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Obsolete |
| IGBT Type | PT | PT | PT |
| Configuration | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 300 A | 430 A | 200 A |
| Power - Max | 830 W | 1000 W | 600 W |
| Vce(on) (Max) @ Vge, Ic | 1.5V @ 15V, 100A | 1.4V @ 15V, 100A | 2.1V @ 15V, 120A |
| Current - Collector Cutoff (Max) | 50 µA | 100 µA | 200 µA |
| Input Capacitance (Cies) @ Vce | 26 nF @ 25 V | 31 nF @ 25 V | 11 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B | SOT-227B | SOT-227B |
