Please send RFQ , we will respond immediately.

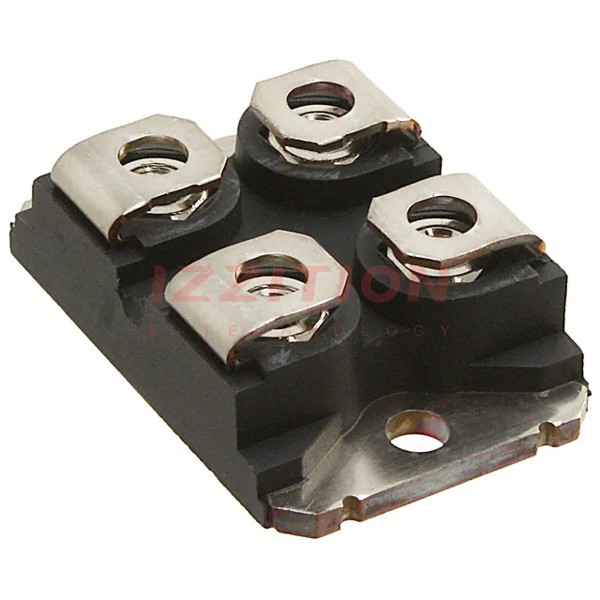

| Part Number | IXGN200N60B | IXGN200N60B3 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Obsolete | Active |
| IGBT Type | PT | PT |
| Configuration | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 200 A | 300 A |
| Power - Max | 600 W | 830 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 120A | 1.5V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 200 µA | 50 µA |
| Input Capacitance (Cies) @ Vce | 11 nF @ 25 V | 26 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B | SOT-227B |
